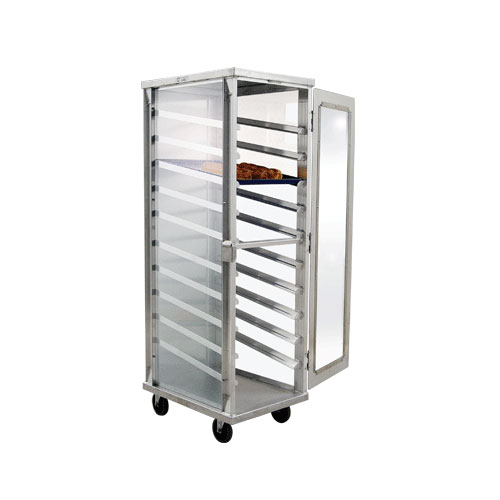

New Age 98063 Enclosed Display Cabinet, Clear Sides and Door 10 Pan

New Age 98063 Enclosed Display Cabinet, Clear Sides and Door, 5" Spacing, 10 Pan Capacity

APPLICATIONS: Product Display.

CONSTRUCTION: Heavy duty, high tensile, extruded aluminum. Type 6063 - T5 alloy.

UPPER FRAME & TOP: The upper frame is constructed of vertical uprights 1” x 2 1/2” x 1/8 ” thick extruded aluminum channels with top cross and side bracing of 1 1/4” x 1 1/4” x .070 wall extruded aluminum tubing, all fully welded together. A solid cap of .063 thick aluminum is welded to uprights and cross bracing.

TRAY SLIDES: Slides are 1 1/ 4” x 1 5/8” x .100” thick extruded aluminum angle with 1 1/4” lip on front end.

REAR PANEL: Rear panels is .080 thick aluminum panels with corrugation on each side for strength and enhanced air circulation. Panel is welded to the top, bottom, and rear vertical uprights.

DOOR: Custom extruded aluminum frame with polycarbonate insert. The door is supported by three stainless steel hinges designed to provide 270° door swing. A positive gravity catch is provided to retain door in a closed position.

SIDES: Covered with 1/8 “ thick polycarbonate that bolts to aluminum uprights.

TIE ROD: A 1” x 1” x .070 wall extruded aluminum tube tie rod is welded to the front vertical upright for extra rigidity.

BOTTOM FRAME: Bottom frame is constructed of 1/8” thick aluminum sheet with four sides bent down 1 5/8”, all corners welded smoothly. Tubular framework welded inside the 1 3/8 ” aluminum sheet for extra rigidity. Caster plates (2 3/4” x 4“ x 3/8” thick pre - tapped) are welded to bottom of frame.

CASTERS: Four platform type 5” casters, full swivel design with sealed ball bearing axle and non - marking wheel.

• Also Known As: Merchandising Shelving, Display Rack

• Construction Warranty: 5 Year Warranty

• Material Warranty: "LIFETIME" Warranty Against Rust and Corrosion

• NSF: Yes

• Shipping Weight: 162.00
