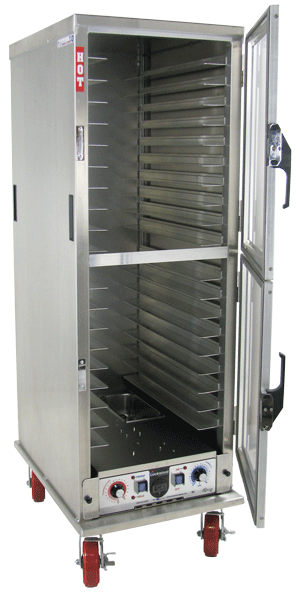

FEATURES
- Furnished with 18 pair of 1-1⁄2” removable pan supports
- Will accommodate up to 18 pans on 2-1⁄2” center spacing
- Blower fan and pan stop provide uniform heat distribution throughout cabinet
- Insulated cabinet with 2 clear polycarbonate Dutch doors
- Integrated handles
- Removable heat unit for easy maintenance and repair includes:
- Exterior mounted controls
- Digital thermometer in face of heat unit
- Temperature adjustable to approximately 180ºF
- Separate temperature and humidity controls
- Electrical: 120 volt, 15 amp circuit, 1500 watts, 60 cycle, single phase. 8 foot cord with 3 prong plug
- Casters: (4) 6” x 2” polyurethane swivel casters, 2 w/brakes
- Options:
- 3-1⁄2” (for steam table pans) or 5-1⁄2” pan supports
- Perimeter or corner bumpers
- Hasp lock
- Dimensions (H x W x D inches): 69-9/16 x 22-15/16 x 31
- Pan Capacity: 18
- Center Spacing (inch): 2-1/2
- Weight (lbs.): 197
CABINET SPECIFICATIONS
- Top: One piece .090” aluminum; riveted and welded to sides and back
- Side panels: Formed .090” aluminum; welded to base and top
- Back panel: .090” aluminum; welded and riveted to base and top
BASE SPECIFICATIONS
- One piece .125” aluminum; formed construction
- Casters: (4) 6” x 2” polyurethane swivel (2 w/brakes); load capacity 900 lbs each (408.23 kg); temp. range -45 °/ 180° F
DOOR SPECIFICATIONS
- Frame: 7/8” x 1-3/4” extruded aluminum screwed and welded together
- Panel: .118” clear polycarbonate, fitted into door frame
- Latch: Magnetic type latch handle screwed to door frame
- Hinges: 4” stainless steel - opens 180°
- Gasket: Perimeter; fitted into frame extrusion, flexible PVC rubber
PAN SUPPORT SPECIFICATIONS
- Extruded .085” aluminum; removable
- Adjustable on 2-1/2” centers
HEAT UNIT SPECIFICATIONS
- Removable bottom mount proof / hold unit
- Body: Formed .063” aluminum
- Thermostat (holding): Mechanical, up to 195°
- Thermostat (humidity): Mechanical, up to 95%
- Indicator lights: Power, Proof, Hold modes
- Switches: (2) Rocker type with guards
- Heat Elements: (1) 1000 W, (1) 500 W internal; (1) 1000 W immersible external for proofing
- Blower Motor
- Thermometer
- Water Pan: 4.3 quart, 23 ga., 18/8 stainless steel
POWER REQUIERMENTS
- 1500 Watts, 120 Volts, 60 Hz, Single Phase 15 Amp.
- Dedicated 15 Amp. service
Dimensions
Length
31 in
Width
22 in
Height
69 in
Weight
197 lb
Ship Freight Only
Yes
