• Brand: Bunn
  • Model: SET00.0203

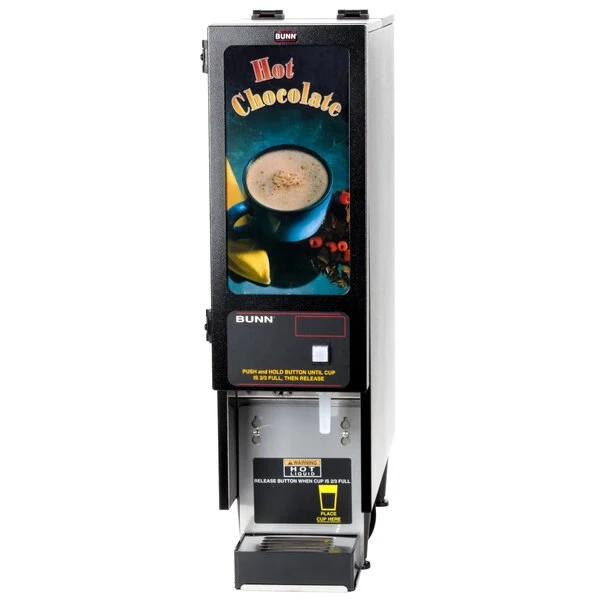

This Bunn FMD-1 BLK Fresh Mix cappuccino espresso machine hot chocolate dispenser has a colorful, lighted display and one, 8 lb. hopper. The bright, hot chocolate display graphic beckons customers to self service stations at your convenience store, coffee shop, or cafeteria style restaurant!

The cappuccino / espresso machine hot chocolate dispenser's variable speed hopper motor gives you complete control over the ratio of powdered mix to hot water inside the mixing chamber.

The Bunn FMD-1 BLK Fresh Mix cappuccino machine / espresso machine hot chocolate dispenser features a large hot water reservoir that provides a serving capacity of up to 4.2 gallons per hour. Its translucent, easy-to-fill hopper ensures quick and timely refilling as needed. Adjustable legs and a drip tray can be configured to accommodate cups up to 7" tall.

The Bunn FMD-1 BLK hot chocolate dispenser has a 120V, 15 amp, 1800 watt electrical rating, and is ETL and NSF Listed. Consult the Specification Sheet for further installation requirements and dimensions.


  • Large hot water reservoir provides 67.2 (8 oz.) cups, (4.2 gal.) or (15.9 litres) per hour serving capacity.
  • Space saving narrow 8" (20.3 cm) cabinet width.
  • Variable speed hopper motors offer a wide range of product mix ratios (.75 to 6.6 grams of powder per second).
  • One 8 lbs. (3.6 kg). easy-to-fill translucent hopper ensures quick and timely refilling.
  • Lighted graphics merchandise drinks for maximizing profits.
  • Adjustable legs and drip tray allows up to 7" (17.8 cm) opening for 20 oz. cups.
  • Specially designed mixing system guarantees perfect beverages every time.
  • Improved automatic rinse reduces run-on after beverage is dispensed.
  • Designed to be easily serviced from front and top of machine.


  • Dimensions: 30"H x 7.9"W x 21"D
  • Shipping Weight: 75 lbs
  • Power Configurations: 120V 15 amps
  • Electrical: 120V model requires 2-wires plus ground service rated 120V, single phase, 60 Hz.
  • Plumbing: 20-100 psi (138-690 kPa) from a 1/4" (6.4mm) or larger supply line. A shut-off valve should be installed in the line before the unit. Install a regulator in line when pressure is greater than 90 psi to reduce it to 50 psi. Supplied with 1/4" (6.4mm) male flare fitting.
75 lb
Ship Freight Only
