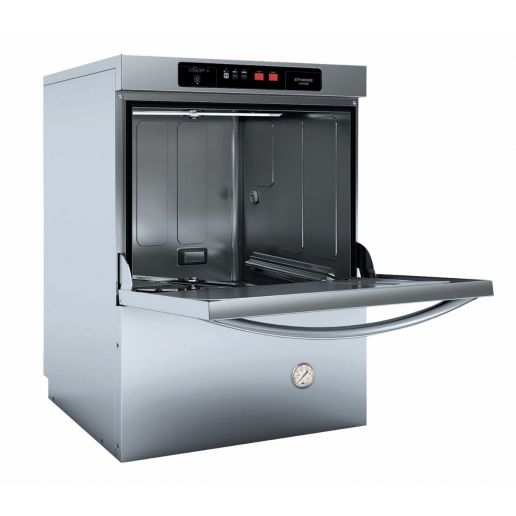

Fagor COP-504W High Temp Undercounter Dishwasher 208/240V 1-3 PH

Standard Features

• High temperature sanitation to protect your ware from harmful chemicals during final rinse. Your ware will come out cleaner and dryer than conventional sanitation methods.
• Electronic Controls for a precise wash with 3 programmed wash cycles to handle your specific needs.
• High production does not mean higher energy cost. With 35 racks per hour production requiring nly 32 amp total draw. Insulated double side walls and less than 1 gallon of water per rack, Fagor's COP-504W has efficiency writen all over it.
• Built-in electric booster heater that will raise the temperature to the NSF required temperature of 180 Degrees for sanitation.
• Unique "Hot Water Assurance" feature which guarantees 180 degree F final rinse.
• Auto-fill will take the gues work of filling your machine times.
• Built-in drain pump, detergent & rinse pumps come standard to give you all the options necessary to run your unit.
• This unit is designed to be used as a Dishwasher or Glassware.

Specifier Statement

Specified unit will be a Fagor COP-504W under counter, front loading, high temp dish or glass washer with built-in booster heater. Features electronical controls with 3 time settings, efficient 32 amp total draw (single phase) and 19 amp total draw (3 phase), .9 gallons per cycle. Stainless steel construction including top and insulated side panels. Standard with liquid detergent, liquid rinse and drain pumps. One year labor / one year parts warranty.

Options And Accessories

• All purpose rack
• Cutlery grid
• Peg rack
• Glassrack
• 16" base stand
• 6" base w/legs
• Cutlery container
• Drain water tempering valve
• Water pressure regulating valve with gauge

Capacities

• Racks Per Hr: 37
• Dishes Per Hr: 875
• Glasses Per Hr. 1260
• Wash Tank: 6.6 gal. / 24. 9 litre

Water Consumption

• Gallons Per Hr. 40.5 gal. / 153.3 liter
• Gallons Per Cycles: .9 gal. / 3.40 liter
• Inlet Temperature (optimum): 140 degrees F 60 degrees C
• Flow Rinse Pressure: 20 - 25

Temperatures

• Wash: 150 degrees F / 88 degrees C
• Rinse: 190 degrees F / 88 degrees C

Operating Cycles

• Wash Time (seconds): 40, 70, 160
• Dwell (seconds): 5
• Rinse Time (seconds): 15
• Total Time (seconds): 60, 90, 180

Heating and Wash Pump Motor

• Electric Wash Tank Heater: 2.8 kw
• Electric Booster Heater: 6 kw
• Motor (hp): 1 hp
• Nema Plug: 6-20P

Dimensions

• Width: 23 5/8"
• Depth: 23 5/8"
• Height: 32.75"
• Max. Clearance: 12" (305 mm)
• Shipping Weight: 160 lbs (73 kg)
• Shipping Volume (cu. ft.): 15

Specifications

Cabinet Constructed of high-quality stainless steel, type 304 top and sides. Back is constructed of galvanized aluminum. Interior cabinet is completely constructed in high-quality 16 gauge, 304 stainless steel. Door is completely stainless steel with a brushed aluminum door handle. Built-in electric booster heater, all stainless steel construction with 2.8 kw elements with infinite rise in water temperature. Wash tank has a 2.8 kw element design to maintain water above 150° F. Individual wash and rinse arms, both upper and lower, all stainless steel construction. Stainless steel filters above water line in 4 quadrants. Unit comes standard on 1-1/2” adjustable legs.

Controls Electronical controls are located on the top front of the machine. Digital temperature displays for wash and booster tanks. Water resistant start button. (3) time settings (90, 120 & 180 sec.) and (1) drain setting. Automatic fill and door safety switch. Power light and running light.

Others Built in detergent and rinse pumps- Std. Built in drain pump with accessibility in the front. Unit is 100% serviceable from the front. Built-in vacuum breaker and automatic drain. Electrical cord with plug, fill and drain hose included.

Warranty One year labor / one year parts. (Continental U.S.A. & Canada only).

Incoming Water Temp

Aprox. racks per hour:

• 140 Degrees F: 35
• 110 Degrees F: 30

Volts/Hz/PH

• 208/60/1: 28 amps
• 220/60/1: 30 amps
• 240/60/1: 32 amps
• 208/60/3: 16 amps
• 220/60/3: 18 amps
• 240/60/3: 19 amps
