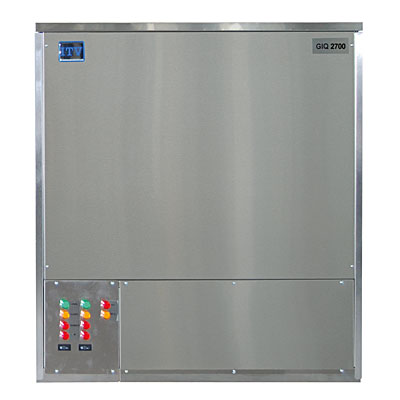

ITV Ice Queen IQ 2700 R Remote Flake Series Ice Machine

STANDARD FEATURES

• Flake Ice: Humidity 50-60%. The best ice for so many applications
• Seafood: supermarkets, fisheries, fish shops, seafood restaurants, boating, marinas
• Healthcare and Research: hospitals, laboratories, universities
• Sports: football, basketball, athletics, swimming, soccer, track & field, traumas, pre and post training, spas, sports medical facilities.
• Drinks: soft drinks, smoothies, etc;
• Strong Mechanics:
• ITV's unique mechanics design is simple, strong and reliable.
• It will give a longer life to your flaker, and shorten service times and costs
• Oversized gearbox
• Patented Auger design for greater longevity of the ice maker
• Security Control:
• The machine is protected to avoid failures caused by gear box motor temperature, water level, or ice level, besides a defrost time delay
• Electromechanical Controls:
• The machine works with elctromechanical timer and thermostats
• Simple, easy to comprehend and service
• High reliability and low maintenance expense
• Easy Access for Service and Installation:
• Designed to have bette access to all components making installation and servicing operations easier
• One person can dsiassemble the entire machine with a basic screwdriver
• Operating Limits:
• Tropicalized machines (T); Suitable for low temperature environments of 41F Air and Water and high temperature environments of 109F (Air), 95F (Water)
• Water pressure: Min. 10psi/ Max 85psi. NOTE: Install a pressure reducer if water inlet pressure is more than 85psi.
• Electrical Specifications:
• 208-230V/60Hz/3 - Fuse size 10- NEMA Plug Type 6-15P

SPECIFICATIONS

• Cond Unit: Remote
• Ice Form: FLAKE
• Daily production Lbs./Kg70F-50F: 2860/1298
• Daily production Lbs./Kg 90F-70F: 2060/935
• Water Usage gal./hr. - l./hr.: 14.3-54.1
• Cool. Req. Watts./btu/hr: 6000/20490
• Voltage: 208-230V/60Hz./3
• Amps: 5
• Net weight Lbs./Kg.: 309/140

Dimensions (inch): W: 31-1/8 x D: 19-7/8 x H: 32-1/8

NOTE: ITV requires the installation of ITV water filtration kit to ensure warranty coverage. All ITV Filtration Kits are specially designed to exclusively be replaced with ITV's replacement cartridges.
