General Description

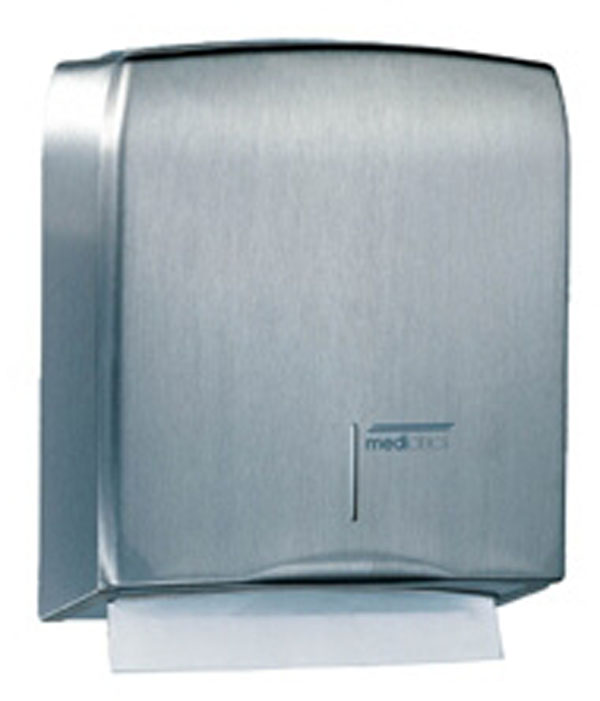

- Paper towel dispenser, surface mounted, steel white epoxy coated.
- Manual dispenser.
- Robust and vandal-resistant.
- Suitable for high traffic facilities.
- Model suitable for public use.
- It generally goes along with a soap dispenser and paper waste receptacle steel white epoxy, complemented by a warm air hand dryer.
Components & Materials
- Stainless Steel AISI 304 perfectly welded body, 22-gauge (0.8 mm) It is mounted on the wall by means of 4 wood screws with their corresponding 3/16" (5 mm) wall plugs. The support of the screws in the back of the appliance are acting as an anti-moisture support, as well as allowing an easy adjustment to the wall. The slots in the inside of the body avoid the screws damaging the paper towels. The opening presents edged borders in order to avoid tearing of paper towels.
- Stainless Steel AISI 304 seamless one-piece lid, 22-gauge (0.8 mm). Fixed to the body by means of 2 rivets. It includes a lock with standard saniflow key, that allows swinging down of lid for replenishment.
- A frontal window indicates refill time.
Operation
Pull the towel until it detaches from the appliance. Repeat the action, at your own convenience.
Technical Characteristics
Installation height: 50"-65" from floor;
For disabled people: 35"-45" from floor
Capacity: C-fold towel capacity: 400 units
Multifold: 600 units
Towels dimensions: 4" x 10" (maximum)
Montaje: Surface
Size: 10-7/8"W x 13"H x 5-1/4"D
Weight: 4.4 Lbs
Specification
Surface mounted paper towel dispenser, shall be made of steel white epoxy coated. Unit shall dispenser either 400 C-fold or 600 multifold towels. The body shall be made of steel white epoxy coated, perfectly welded, 22-gauge (0.8 mm), fully sealed. The support of the screws should act as an anti-moisture support, as well as slots to avoid the screws damaging the paper towels and permit the easy adjustment to the wall. It should be suitable to be mounted on the wall by means of 4 wood screws with their corresponding 3/16" (5 mm) wall plugs. The opening should present edged borders in order to avoid tearing of paper towels. The lid should be made of steel white epoxy coated one-piece seamless, 22-gauge (0.8 mm) and fixed to the body by means of 2 rivets. It includes a lock with standard saniflow key, that allows swinging down of lid for replenishment. The appliance should have a frontal window to indicate refill time. Overall dimensions shall be 10-7/8"W x 13"H x 5-1/4"D.
Dimensions
Length
11 in
Width
13 in
Height
6 in
Weight
5 lb
Specification Sheet
