• Brand: Saniflow
  • Model: DJ0030
 Free Shipping
$70.00
$62.99

General Description

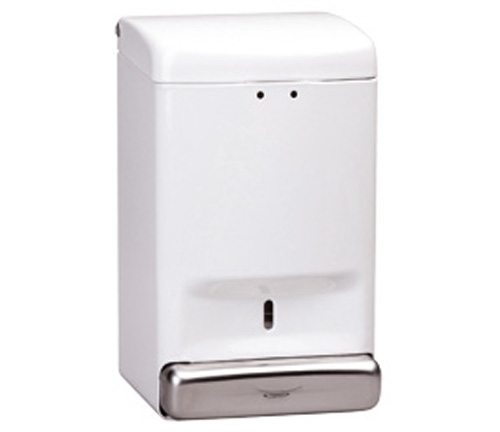

  • Liquid soap dispenser, wall mounted.
  • Push-button operated.
  • Robust and vandal-resistant.
  • Suitable for high traffic facilities.
  • Model suitable for public use.
  • It normally goes along with a warm air hand dryer.

Components & Materials

  • Stainless steel AISI 304 body, top filling lid and push-button, 22-gauge (0.8 mm), white epoxy coated.
  • It is mounted on the wall by means of 4 wood screws with their corresponding 3/16" (5 mm) wall plugs (the lower ones attach the dispenser, while the upper ones fix it to the wall) (screws and wall plugs are provided).
  • Anti-dripping and anti-corrosion valve. Design based on a polyamide piston with 2 elastomeric toroidal gaskets, silicone blocking pivot and stainless steel ball to ensure tightness.
  • Thermoplastic container, 1/8" (3 mm) thick. Access to its interior using a standard mediclinics key supplied.
  • Stainless steel AISI 302 springs.
  • Housing with 1 viewing slot.

Operation
Press push-button manually to dispense a measured amount of liquid soap. Valve is operable with one hand, without tight grasping, pinching, or twisting of the wrist.

Designers note: Do not use E4-rated antibacterial soaps (active ingredients PCMX or Triclosan), iodine-based surgical soaps, or alcohol-based antiseptic solutions in this unit. Soap valve is not designed to dispense these types of corrosive soaps.


Technical Characteristics
Liquid soap: All except for surgical soaps
Installation height: 6" - 8" from shelf
Quantity dispensed per pulsation: 0.033 - 0.04 Oz
Capacity: 37.2 Oz
Container: Thermoplastic
Operable force: 26 N
Push-button: Stainless steel
Montaje: Surface
Size: 4-5/8"W x 8-1/8"H x 4-5/8"D
Weight: 2.2 Lbs

Specification
Wall mounted soap dispenser, robust and vandal-resistant with a body, top-filling lid and push-button made of stainless steel AISI 304, 22-gauge (0.8 mm), white epoxy coated. It shall be mounted on the wall by means of 4 wood screws with their corresponding 3/16" (5 mm) wall plugs; the lower ones attach the dispenser, while the upper ones fix it to the wall. The dispenser shall include an anti-dripping and anti-corrosion valve, which is based on a polyamide piston with 2 elastomeric toroidal gaskets, silicone blocking pivot and stainless steel ball to ensure tightness. The thermoplastic container shall be 1/8" (3 mm) thick and the access to its interior shall be using a standard saniflow key supplied. The dispenser shall be provided with stainless steel AISI 302 springs and housing with 1 viewing slot. The soap dispenser shall be suitable for commercially marketed all purpose liquid and lotion hand soaps and synthetic detergents except for E4-rated antibacterial soaps (active ingredients PCMX or Triclosan), iodine-based surgical soaps, or alcohol-based antiseptic solutions. Overall dimensions shall be 4-5/8"W x 8-1/8"H x 4-5/8"D.

Dimensions
Length
9 in
Width
5 in
Height
9 in
Weight
3 lb
Specification Sheet
