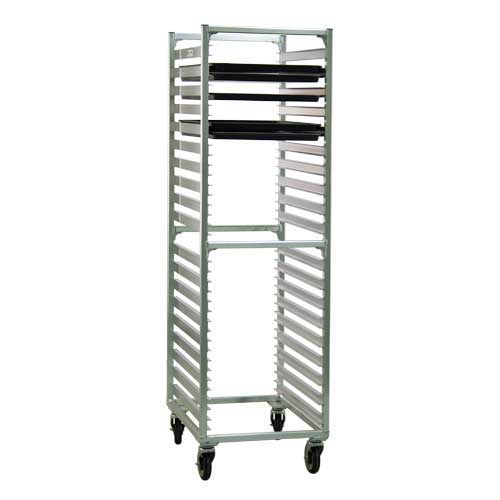

New Age 1461 Full Height Channel Style Pan Rack, 38 Pan Capacity

New Age 1461 Full Height Channel Style Pan Rack, 1.5" Space, 38 Pan Capacity

Virtually maintenance free, our racks are built for the long haul. All welded construction insures the maximum strength and stability of each rack...Shipped assembled for immediate use. Available in both end and side load ing styles, to accommodate 18” x 26”, 13” x 18”, and 14” x 18” pans, we have a rack to meet your needs. Supporting cross braces have gussets securely welded into place to prevent “racking”.

Angles are securely welded into place, front and back, making sure that all cracks and crevices are sealed. Note how they are welded both verticall y and horizontally for support. Each angle slide is ribbed in order to minimize the galling or flaking that can occur when pans are slid on and off. This fea ture also allows pans to slide on and off more easily than if a flat angle slide were used.

Equipped with four 5” heavy duty platform type casters, these all welded aluminum racks are built to be pushed around. Non - marking wheels protect f loors and minimize noise. Caster plates are securely welded to the frame of each unit and casters are then bolted to the caster plate not directly to the frame...with four bolts. This procedure strengthens the overall integrity of the rack and prevents break age.

Guaranteed to last, each rack carries a Lifetime Guarantee against rust and corrosion as well as a Five - Year Guarantee against material defects and workmanship.

APPLICATIONS: General storage and movement of trays and pans.

CONSTRUCTION: Heavy duty, high tensile, extruded aluminum. Type 6463 - T5 alloy.

TRAY SLIDES: Slides are 1 - ¼” x 1 - 5 / 8 ” x .100 extruded aluminum angle welded to frame. Note: The 1461 and 1461S use a ¾”x1 9/1 6 ” channel to hold trays by the lip.

FRAME & CROSS SUPPORTS: Vertical and horizontal frame members are 1” x 1” x .070 extruded aluminum tubing. All welded unit.

CORNER GUSSETS: Gussets of 1 - ½” x 1 - ½” x 5 / 8 ” thick angle are welded to the inside angles (bo ttom side) where horizontal cross bracing meets vertical uprights. Note: Each gusset requires 4 - ½” of weld.

CASTERS: Platform type, 5” diameter wheel, full swivel design with sealed ball bearing. Wheel material is non - marking polyurethane. NSF Certified.
