• Brand: Kold-Draft
  • Model: GBX1064ACE
 Free Shipping
$19,874.00
$11,924.00

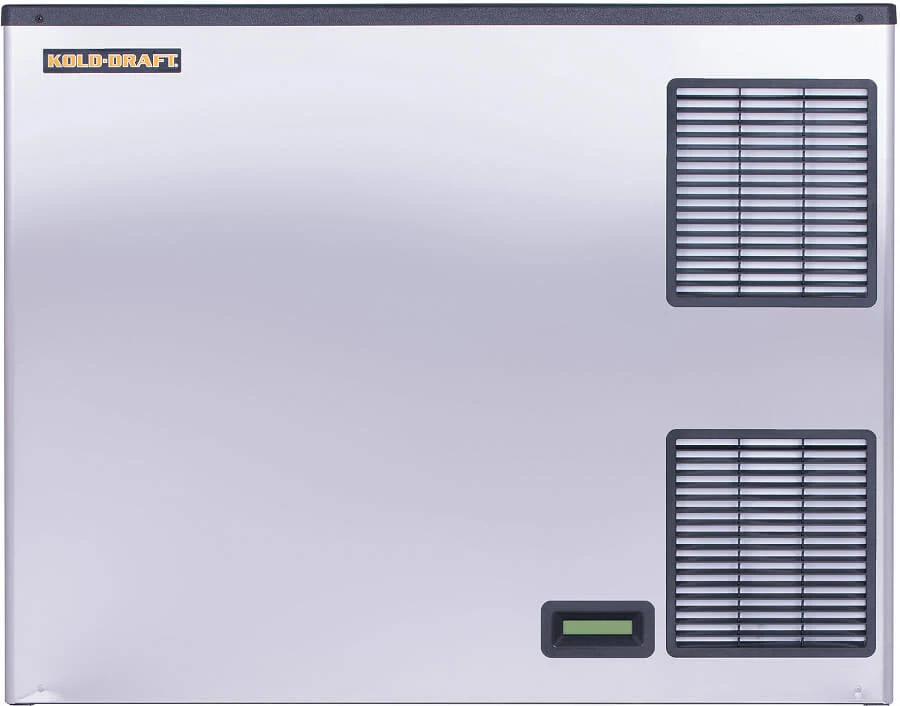

The Kold-Draft GBX1064AC X-series ice machine head can make 1,075 pounds of ice if the incoming water is 50 degrees Fahrenheit and the surrounding air is 70 degrees Fahrenheit. Its air-cooled condenser does not require a constant water flow to work like water-cooled condensers do, and the large, full-size cubes displace a lot of water and melt slowly to reduce the amount needed to fill a glass. The Kold-Draft GBX1064AC ice maker forms cubes by running water over the evaporator grid. Water collects and freezes in the grid, before it's released into an ice bin that can be purchased separately. A bin stores ice and keeps it ready to use, while the unit itself has a rust-resistant stainless steel frame with black panels and plastic louvers. Staff members can switch the machine on and off or turn it to a cleaning setting. An LCD display on the front keeps users up to date with what's going on.

  • 1,075-lb. daily ice production with 70 degrees F ambient air and 50 degrees F incoming water
  • 860-lb. daily ice production with 90 degrees F ambient air and 70 degrees F incoming water
  • Large-cube ice size: 1.25 in. x 1.25 in. x 1.25 in.
  • Air-cooled condenser
  • Stainless steel frame with plastic panels and louvers
  • Sturdy rounded corners
  • R404A refrigerant
  • Refrigerant is regulated by a thermostatic expansion valve
  • LCD display
  • On/off button
  • Ice/clean switch
  • Potable water supply is 3⁄4-in. FPT
  • Bin drain is 3⁄4-in. FPT
  • Cuber drain tube is 3⁄4-in. diameter and flexible
  • Can stack with other X-series to make even more ice
  • Compatible with KDB650 and KDB950 ice bins (sold separately)
  • 13,850 average BTU; 18,000 peak BTU

Electrical
Frequency
60
Phase
1
Voltage
208
Dimensions
Length
31.10 in
Width
42.30 in
Height
33.70 in
Package Quantity
1
