• Brand: Jet-Tech
  • Model: F-18DP
 Free Shipping
$6,490.00
$5,110.88

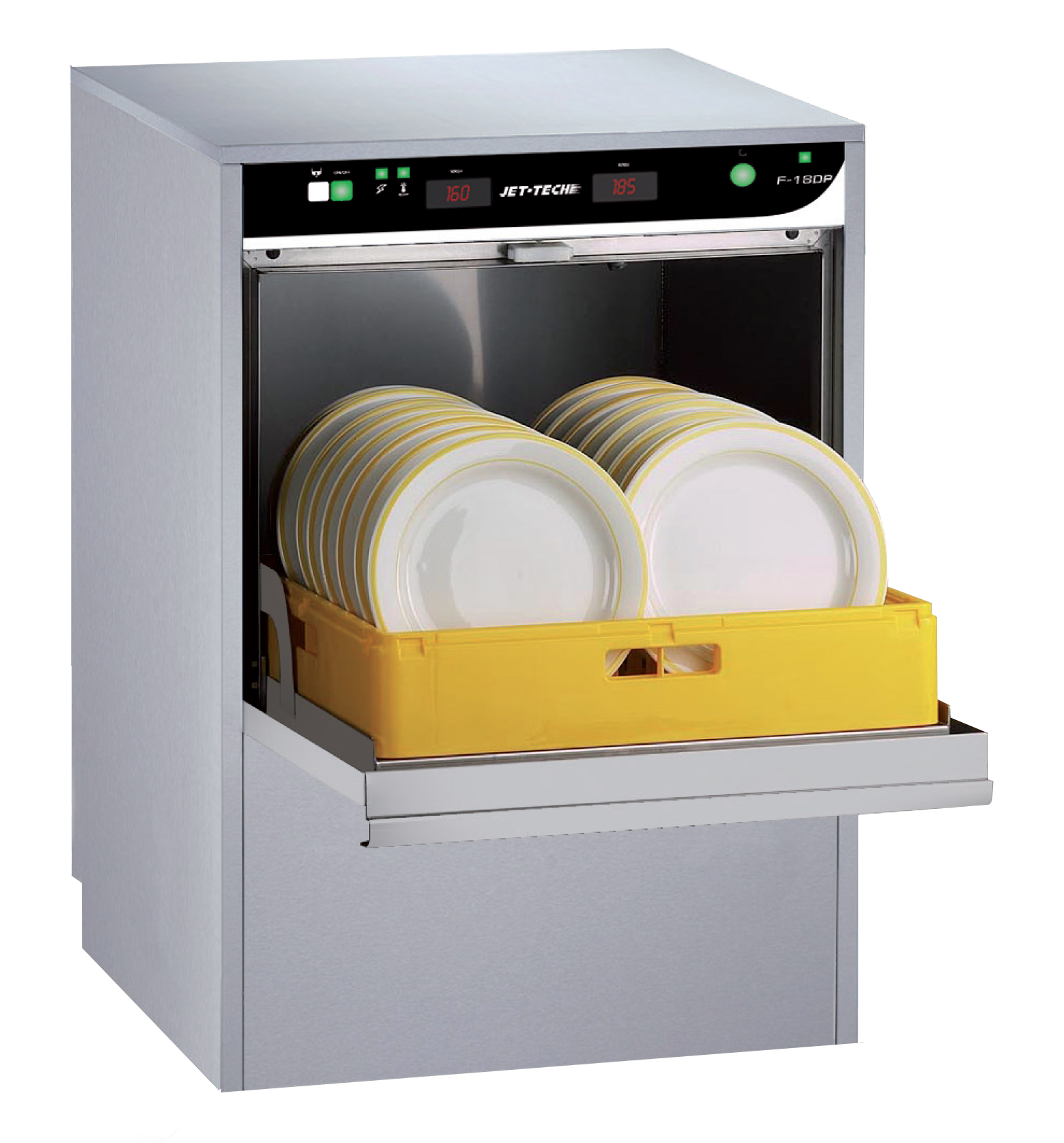

Keep your cups and glasses clean without sacrificing valuable floor space with the Jet-Tech F-18DP High-Temp Glass Washer. Using only 23.75" Inches of counter width, it is still powerful enough to wash up to 24 racks every hour.

Features

  • Built-in booster for superior sanitation
  • Fully automatic program with wash phase at 150°F (65°C) and final rinse phase at 185°F (85°C)
  • Capacity: 24 racks per hour
  • Sanitary labyrinth door eliminates need for gasket
  • Built-in rinse-additive pump for sparkling results
  • Built-in automatic detergent pump for consistent results
  • Built-in automatic drain pump for ease of installation

Construction Features

  • Body, external housing, wash tank, and all chassis components in brushed stainless steel AISI 304 18/10.
  • Noise 58 DbA due to utilization of double-wall insulated panels
  • Deep drawn inner wash chamer provides for maximum sanitation
  • Upper and lower wash and rinse jets on revolving arms constructed of fiberglass; easy to remove and clean without the need for tools
  • Integrated AISI 304 18/10 stainless steel booster
  • Safety micro-switch on the door to interrupt wash pump action
  • Independently-operated heating elements alternating between booster and wash tank
  • Alternating heating resistors reducing maximum absorption thereby reducing energy costs
  • Possibility of built-in or free-standing installation
  • Standard insulated top and side panels
  • Automatic fill and water level regulation of the wash tank
  • Wash pump protected with filter plus additional shield for tank element.

Accessories

  • Optional:
    • Pressure reducing valve. (PRV) kit
    • Stainless steel stand (12" high)

Technical Features

  • Rack Capacity: 15.75" x 15.75"
  • Complete cycle: 160 seconds (145 seconds wash and 15 seconds rinse)
  • Wash tank capacity: 3.0 gal
  • Wash tank element: 2000 Watts
  • Wash temperature: 150°F(65°C)
  • Booster capacity: .87 gal
  • Booster element: 2400 Watts
  • Booster (water) temperature: 185°F - 194°F (85°C - 90°C)
  • Power Supply: 208-240V/60Hz/12.9A
  • Motor-pump: .5 H.P. with thermal overload protection
  • Maximum power rating: 2600 Watts
  • Water consumption per cycle: .5 gal
  • Water consumption per hour: 15 gal
  • Water supply: 1/2" hot water supply 140°F(60°C)
  • Flow pressure : 25 p.s.i. (dynamic)
  • Water inlet connection: 3/4" Male hose connector (hose included)
  • Drain connection: 1" ID max height 36" (hose included)
  • Shipping weight: 116 lbs
Features
Door Design
Door Opening

Racks Per Hour
Electrical
Amperage

Frequency

Voltage

Warranties
Warranty
Weight
165 lb
Ship Freight Only
Yes
Specifications
