Features
- ThermoStop System - Guarantees 185F (85C) final rinsing temperature, regardless of incoming water temperature.
- OneGO - Electronic control system featuring intelligent software LED interface and multiple function analysis. OneGO soft touch buttons allow you to run a selection of four different cycles, all in one easy touch!
- SmartSelf diagnostics - have all necessary advanced service diagnostics information at your fingertips!
- EasyGo - 'Soft-start' washing system protects your valuable dishes and glassware from any chippage or breakage.
- Energystar qualified - extremely low water and electrical consumption maximizing your profits

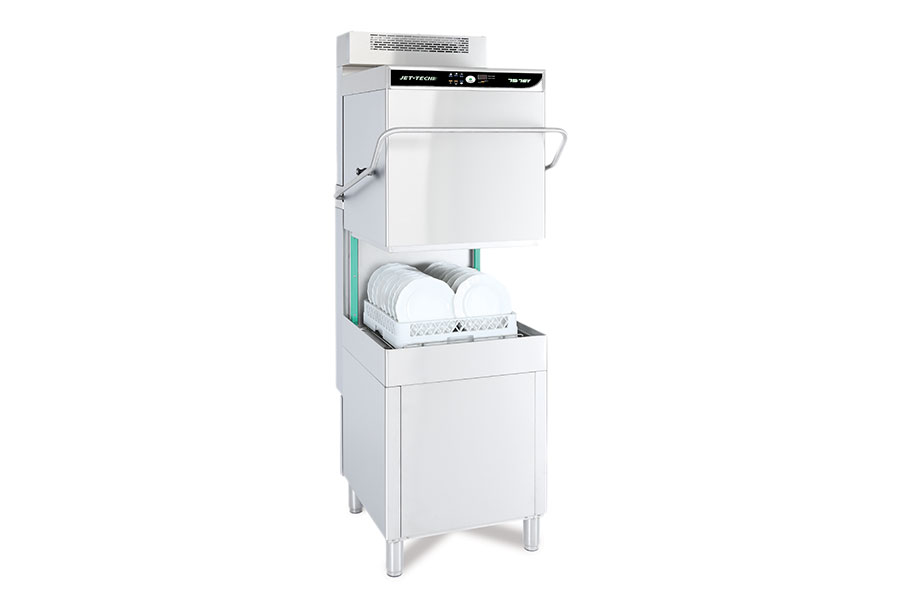

- Model 757E is fully equipped with a built-in booster for high temperature rinse water and automatic peristaltic pumps for both liquid detergent and rinse-additive.
Construction Features
- Body, external housing, wash tank, and all chassis component in brushed stainless steel - type AISI 304 16 guage.
- Upper and lower wash and rinse jets on revolving arms constructed of stainless steel; easy to remove and clean without the need for tools
- Adjustable bullet-style feet.
- Safety two-way automatic micro-switch on the door controlling the operation of the wash motor-pumps.
- Independently operated heating elements alternating between booster and wash tank
- Alternating heating resistors reducing maximum absorption thereby reducing energy costs
- Inner washing chamber with coved corners and one-piece stamped wash tank provides user with the most sanitary environment. Our recessed wash tank makes the 757E ideally suited for marine applications.
- Unique stainless steel rack support glide system alows operator to easily change from in-line to corner application
- Door opening with overall clearance of 16.75" with ergonomic door handle.
- Automatic fill and water level regulation of the wash tank
- Wash pumps are protected with double scrap filters easy to remove for quick cleaning and proper maintenance
- Machine can be installed either as an in-line or corner application with simple field modification
- Slide-out integrated front control panel provides easy access for technical service.
- Front mounted electronic control panel with digital temperature displays.
- Standard equipment includes: one open combination rack and one peg dish rack
Accessories
- Optional:
- Pressure reducing valve. (PRV) kit
- Drain water tempering kit
Technical Features
- Rack capacity: 19.75” x 19.75” (500 mm x 500 mm)
- Total cycle: 1-2-3-4 minutes
- Hourly production: 60/30/20/15 racks/hr. (1080/540/360/270 dishes/hr.)
- Wash tank capacity: 5.25 U.S. Gallons (20 Litres)
- Booster capacity: 2.62 U.S. Gallons (10 Litres)
- Wash temperature: 150°F (65°C) minimum / controlled electronically
- Final rinse temperature: 185°-194°F (85°-90°C.) minimum / controlled electronically
- Incoming water temperature: Minimum 122°F. (50°C.)
- Incoming water pressure: 30-60 p.s.i. (2-4 bar)
- Water consumption per cycle @ 30 psi: 0.85 U.S. Gallons (3.2 Litres)
- Washing pump power: Two individual motor-pumps each of 0.75 H.P. for total of 1.5 H.P.
- Power supply: 208V/60HZ
- Tank heating element: 4.0 KW
- Booster heating element: 9.0 KW
- Maximum power rating: 10.0 KW - 48.0 amps (single phase) 28.5 amps (three phase)
- Machine weight: 308 lbs. (140 kg.)
- Ship weight: 340 lbs. (154.5 kg.)
Dimensions
Length
33 in
Width
26 in
Height
62 in
Weight
340 lb
Ship Freight Only
Yes
