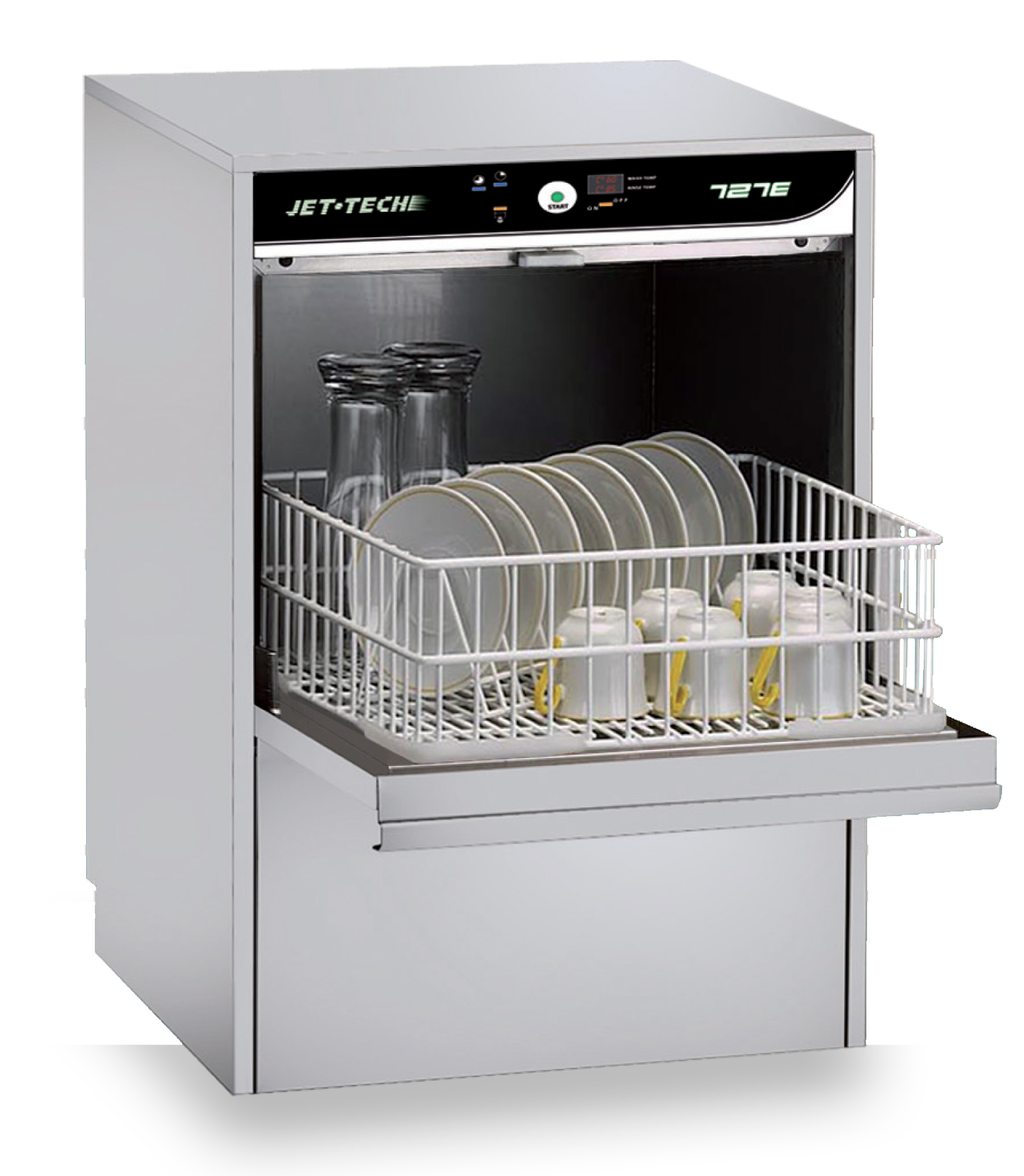

Jet-Tech Systems 727E High-Temp Electronic Under-Counter Cup and Glass Washer
Features
- ThermoStop System Guarantees 185F (85C) final rinsing temperature, regardless of incoming water temperature
- OneGO: Our electronic control system featuring intelligent software LED interface and multiple function analysis. OneGO™ soft touch buttons allows you to run a selection of three different cycles, all in one easy touch!
- SmartSelf diagnostics: have all necessary advanced service diagnostics information at your fingertips!
- EasyGO: Our ‘soft-start’ washing system protects your valuable dishes and glassware from any chippage or breakage
- EnergyStar qualified extremely low water and electrical consumption maximizing your profits
- Model 727E is fully equipped with a built-in booster for high temperature rinse water, automatic peristaltic pumps for both liquid detergent and rinse-additive, and an automatic drain pump that has the exclusive ‘wash-down’ feature at the end of the work day for a self-cleaning operation.
Construction Features
- Body, external housing, wash tank, and all chassis components in brushed stainless steel AISI 304 18/10.
- Noise 58 DbA due to utilization of double-wall insulated panels
- Upper and lower wash and rinse jets on revolving arms constructed of fiberglass; easy to remove and clean without the need for tools
- Integrated AISI 304 18/10 stainless steel booster
- Safety micro-switch on the door to interrupt wash pump action
- Reinforced door hinge system
- Independently-operated heating elements alternating between booster and wash tank
- Alternating heating resistors reducing maximum absorption thereby reducing energy costs
- Possibility of built-in or free-standing installation
- Inner washing chamber with covered corners and one-piece stamped wash tank provides user with the most sanitary environment
- Wash pump protected with filter, plus additional filter for overflow tube
- Door-opening with overall clearance of 10.8"
- Automatic fill and water level regulation of tank
- Slide out integrated front control panel provides easy access for service
- Free mounted electronic control panel with digital temperature displays
- Standard equipment includes: One 16 compartment angled section glassware rack and one open combination rack for cups, bowls, and assorted wares.
Accessories
- Optional:
- Pressure reducing valve. (PRV) kit
- Stainless steel stand (12" high)
- Drain water tempering kit
Technical Features
- Rack capacity: 15.75” x 15”75” (400 mm x 400mm)
- Total cycle: 2-3-4 minutes
- Hourly production: 30/20/15 racks/hr.(1080/720/540 glasses/hr.)
- Wash tank capacity: 2.9 U.S. Gallons (11 Litres)
- Booster capacity: 0.79 U.S. Gallons (3 Litres)
- Wash temperature: 150°F (65°C)minimum / controlled electronically
- Final rinse temperature: 185°-194°F (85°- 90°C.) minimum / controlled electronically
- Incoming water temperature: Minimum 122°F.(50°C.)
- Incoming water pressure: 30-60 p.s.i. (2-4 bar)
- Water consumption per cycle @ 30 psi: 0.52 U.S. Gallons (2 Litres)
- Washing pump power: 0.4 H.P.
- Power supply: 208V/60HZ
- Tank Heating Element: 2.0 KW
- Booster Heating Element: 2.4 KW
- Maximum power rating: 2.8 KW - 13.5 amps
- Machine weight: 106 lbs. (48.4 kg)
- Ship weight: 118 lbs. (53.6 kg.)
