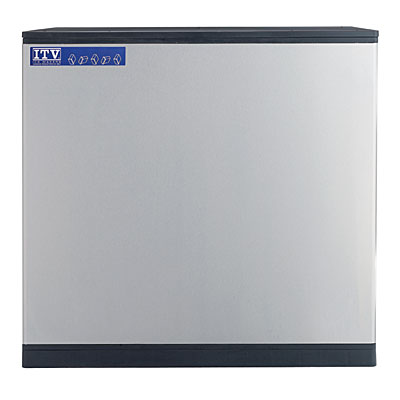

ITV SPIKA MS 700-22 A1F Modular Full Cube Style Series Ice Machine Air Cooled

STANDARD FEATURES

• New water distributor:
• Increases resistance against scale build up
• Easily removable and cleanable
• 30" Wide:
• Standard width for modular ice makers; fits any 30" wide ice storage bin or dispenser
• Larger daily ice production:
• From 494 Lbs./224 Kg. to 970 Lbs./440Kg. a day
• Dual switch:
• A rear switch allows to turn the machine on/off easily.
• Removing the front cover we have the ice/wash switch
• Easy cleaning:
• Smart plastic design for food zone
• Inlet water connection through evaporator:
• Helps to harvest
• Precools water
• Assists energy recovery
• Easy access for service and installation:
• Designed to have better access to all components making installation and servicing operations easier.
• One person can disassemble the entire machine with a basic screwdriver
• Operating limits:
• Tropicalized machines ( Class T )
• Suitable for low temperature environments of 41F
• Air and water and high temperature environments 109F (Air), 95F (Water)
• Water pressure: Min. 10 psi (0.7 bar.)/ Max. 85 psi (6.0 bar.) NOTE: Install a pressure reducer if water inlet pressure is more than 85 psi (6.0 bar.)
• Electrical specifications:
• MS700-22: 115V/60Hz./1. Also available 208-230V/60Hz/1. Plug 5-15P
• More energy efficient:
• SPIKA Series are Energy Star® qualified machines, reducing water and electricity consumption

SPECIFICATIONS

• Cond Unit: Water
• Cube Style: FULL
• Daily production Lbs./Kg70F-50F: 676/307
• Daily production Lbs./Kg 90F-70F: 527/239
• Cube cycle: 480
• Water Usage gal./hr. - l./hr.: 5.40-20.60
• Voltage: 208-230V/60Hz./1
• Kwh/100lbs.- Amps: 3.94-10.0
• Net weight Lbs./Kg.: 187/85

Dimensions (inch): W: 30 x D: 24-3/8 x H: 29-7/8

NOTE: ITV requires the installation of ITV water filtration kit to ensure warranty coverage. All ITV Filtration Kits are specially designed to exclusively be replaced with ITV's replacement cartridges.
