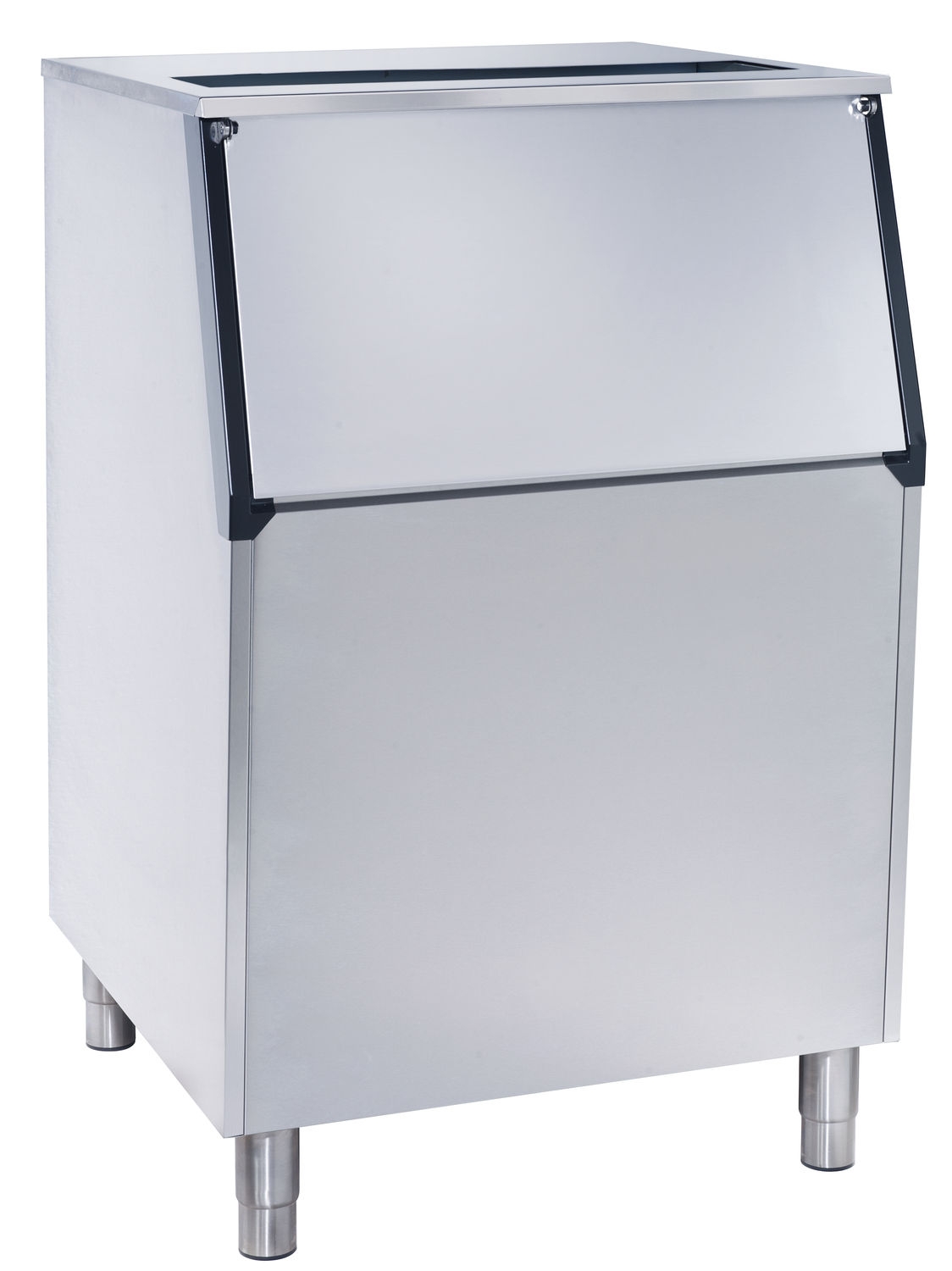

ITV S-500 Slope Front Ice Storage Bin 408lbs

STANDARD FEATURES

• Three models to meet diffrent ranges of space and capcity requirements
• Stainless steel body AISI 304 with galvanized back and bottom
• Strong structure that resists weight of ice machines. The bin maintains appearance, year after year
• High density polyurethane insulation injected to ensure long lasting ice inside the bin.
• The design of the bin is sanitary and easy to clean.
• The liner is a one seamless piece, rotocast-polyethylene bin, manufactured in a very resistant material, that remains undamaged by ice drop, scratches, knocks or scuffs.
• Bin bottom design enhanced for quick and easy drain.
• Rotating drain connection.
• Door and seals designed to avoid heat coming into the bin, resisting unwanted outside ambient temperatures.
• 6” Adjustable legs included.
• NSF approved.
• Warranty: 24 months parts and labor

SPECIFICATIONS

• Storage Capacity:
• Machine width 52", Ice Storage Bin width "48 (lbs/Kg): 408/185
• Application (Lbs/Kg): 510/231
• Cubic Volume (sq.ft/sq.m.): 17/0.48
• Dimensions (inch): W: 30 x D: 32-1/4 x H: 42-1/6
• Net Weight (Lbs/Kg): 123/56
• Shipping Weight (Lbs/Kg): 150/68

Ice Storage Bin includes cube style adaptor plate. Please , specify if flaker style (Ice Queen) adaptor plate is required, when ordering.
