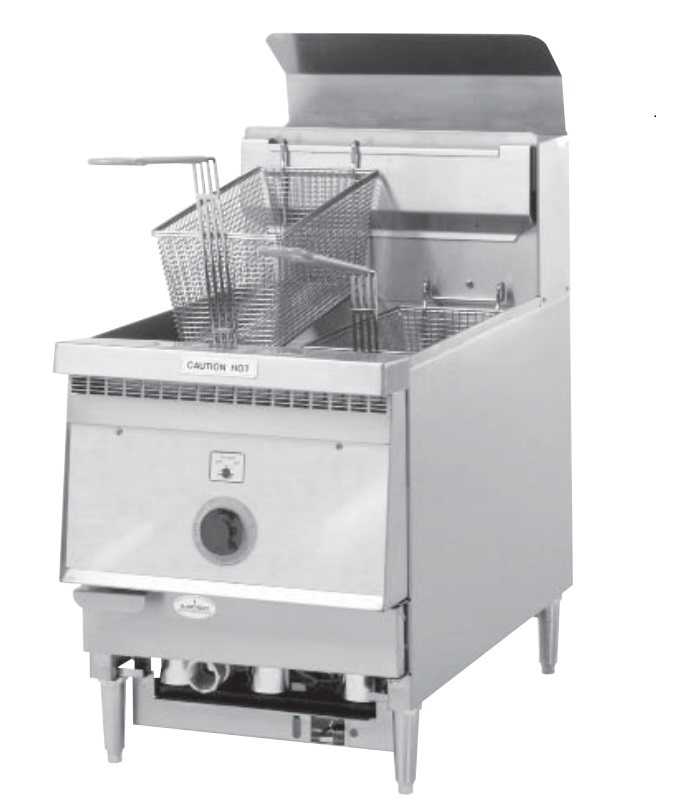

Keating 10x11 CMG Counter Model Instant Recovery Fryer Gas

Standard Features

• 54,000 BTU input for cooking up to 40 lbs. of frozen french fries per hour
• Instant Recovery using less energy with more efficient, patented Wing Turbulators
• Stainless Steel cabinet
• Polished Stainless Steel fryer vessel
• Extra large Cold Zone
• Saves valuable space without sacrificing production
• Saves on oil costs/cooks at lower temperatures
• No electrical connections needed
• Frying Area 10.75" x 11.75"
• Oil Capacity: 26 lbs

Options:

• Thermostat Seal
• Portable Filter
• Security Package
• Cover

The 10×11 Counter Model Fryer is ideal for multi-product use. The 10×11 Counter Model allows you to cook up to 40 lbs. of frozen french fries per hour with an input of 54,000 BTU.

Keating saves oil costs in three ways:

• BETTER FRY POT DESIGN
• LARGER COLD ZONE
• INSTANT RECOVERY

1. You shouldn't have to wait on the fryer. A properly designed fry pot ensures that the fryer has recovered its temperature before the end of the cooking cycle. Keating “INSTANT RECOVERY" means continuous performance.
2. The Keating frying vessel is 27% Cold Zone, the food particles collected in the cold zone are unheated and therefore do not carbonize and contribute to premature shortening breakdown.
3. Keating's “INSTANT RECOVERY feature means frying at lower temperatures (325° – 335°F) extending oil life while enhancing product quality.

Oil Capactity - 26 lbs.

Easy to clean Keating uses only 304 stainless steel in its frying vessel design and polishes each vessel. The smoother the surface, the less carbon build-up occurs, making cleaning easier. A full one inch front drain allows easy draining of oil. Safety controls ensure safe and accurate cooking. The patented and precise thermostat controls cooking temperatures to ± 3°F. Hi-Limit control protects against the oil and fryer overheating. Each fryer goes through a rigorous 100% test before shipping with every component carefully checked. The actual temperature test chart is included with each fryer.

Special Order Options Keating gives you the widest range of options to ensure your fryer is exactly suited to your needs.

SPECIFICATIONS

Fryer Vessel - 18 gauge stainless steel, with a shortening capacity of 26 pounds. Equipped with two 18 gauge stainless steel, 3" wide x 5" high horizontal heat transfer tubes, spaced above the bottom of the vessel so that the bottom is unheated and the food particles collecting in the bottom zone are unheated and therefore do not carbonize. The vessel is polished to inhibit carbon buildup and facilitate easy clean-up. The bottom of the vessel slopes toward the front, and is equipped with a 1" Tefl on core 1/4 turn drain valve, so the shortening can be drained into a receiving vessel placed in front of the fryer.

Splashdeck - 16 gauge, 304 stainless steel. It slopes toward the shortening containing vessel.

Splashback - 18 gauge, 304 stainless steel. It completely covers the side of the flue.

Cabinet - 18 gauge stainless steel. Rigid in construction, with four 4" adjustable legs. The cabinet door is made of 22 gauge 304 stainless steel. The door covers the front of the cabinet from the bottom of the fryer to the fryer panel, and the full width of the cabinet. Above the panel is a canopy. No additional space is required for the door to open a full 90 degrees. A stainless steel flue deflector is provided for installing onto the flue back.

Heat Transfer Tubes - Two heat transfer tubes, made of stainless steel polished to a #7 mirror finish.

Thermostat - Close range, hydraulic type, is accurate to ±3°F from 300° to 350°F with stainless steel bulb. Application of this thermostat is patented by Keating.

Hi-Limit Control - Manually resettable type with stainless steel bulb.

100% Safety Shut-Off - Millivolt type with combination control gas valve and thermopile.

Standard Accessories - Includes one pair 4 mesh baskets, grid screen over heat transfer tubes, drain clean out rod, 1" x 11-1/2" drain extension and sample of Keating Klenzer.

Electrical Requirements - Not necessary on AA model fryers.

Gas Requirements - Install a 3/4" male NPT connection and 4" water column pressure (natural gas) and 10" (LP) at the fryer burner manifold. Supply pressure to fryers must be 7" (natural gas) and 11" (LP) water column.

Special Order Options may include cover, thermostat seal, portable fi lter and security package.

INSTALLER - Check plumbing and gas codes for proper gas supply line sizing to sustain burner pressure when all gas appliances are full on. Supply pressure must NOT be above 13.84" WC or gas valve damage may occur.

MODEL 10x 11 CM Natural Gas

• BTU Input 54,000
• Working Height 19 3/8"
• Overall Height 27 1/4"
• Depth 25 1/4"
• Width 12 3/8"
• Weight 120 lbs.
